| item | value |
| Model | CR8 (Professional) |
| Customized support | OEM, ODM, OBM, Software reengineering |
| Optical Geometry | D/8 (diffuse illumination, 8° direction reception)SCI measurement
Comply with standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Application | Used for color difference quality control in plastic electronics paint and coating textile and garment printing and dyeing
ceramics and other industries.
Find the color card through the mobile APP |
| Integrating Sphere Size | 40mm |
| Light Source Device | Full spectrum LED light source |
| Spectroscopic Method | 8 channel filter optical splitting |
| Place of Origin | guangdong |
| Warranty | 1 Year |
| Sensor | CMOS Sensor |
| SpectralRange | 400~700 nm |

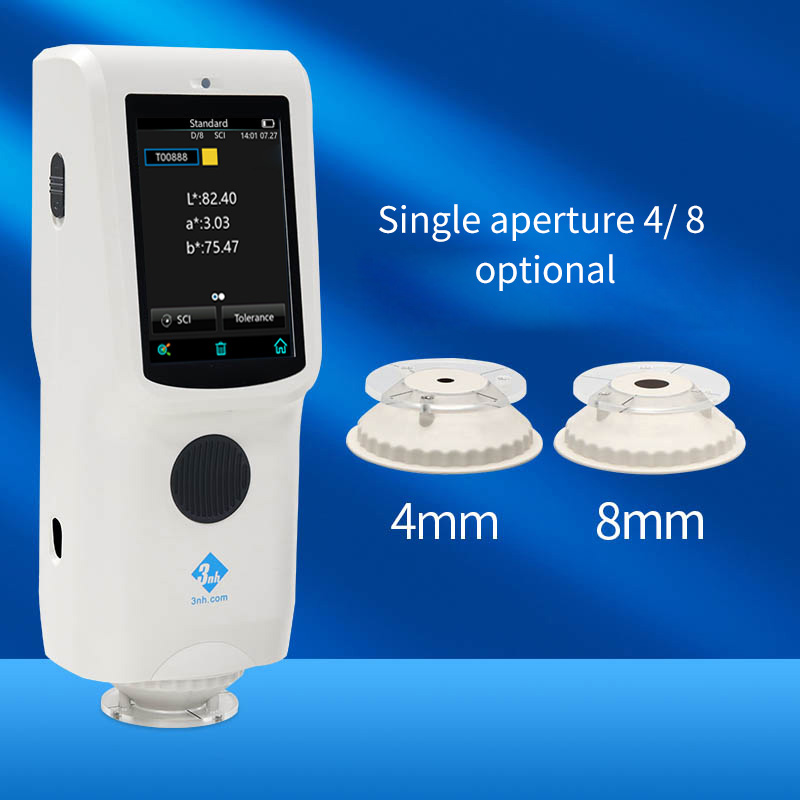

| Measurement Aperture | 8mm or 4mm |
| Light-included Mode | SCI |
| Color Spaces | CIE LAB XYZ Yxy LCh CIE LUV s-RGB HunterLab βxy DIN Lab99
(Part of them are only implemented in APP) |
| Language | Simplified Chinese English |
| Color difference formulas | ΔE*ab ΔE*uv ΔE*94 ΔE*cmc(2:1) ΔE*cmc(1:1) ΔE*00 DINΔE99 ΔE(Hunter) (Part of them are only implemented in APP) |
| OtherColorimetricData | WI(ASTM E313,CIE/ISOAATCCHunter) YI(ASTM D1925,ASTM 313) Mt(metamerism Index) Staining Fastness Color Fastness Color Strength
Opacity 555 Index Munsell(C/2) Spectro Curve (Part of them are only implemented in APP) |
| Division Value | 0.01 |
| Observer | 2°/10° |
| Illuminant | D65,A,F2(CWF) |
| Displayed Data | Reflectivity(at 3 specific wavelengths specified by the user)chromaticity value, color difference value/graph, pass/fail result,
color simulation, color offset |
| Inter-instrument error | MAV/SCI, within ΔE*ab 0.35(Average for 12 BCRA Series II color tiles) |
| Power source | Rechargeable lithium-ion battery 3.7V 3200mAh |
| Measurement Time | Approx. 1.5s |
| Repeatability | Chromaticity value: MAV/SCI, ΔE*ab within 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after
white calibration) |
| Accuracy | 0.1 |
| Measurement Method | Single measurement average measurement (2~99 times) |
| Locate Mode | Light Spot Positioning |
| Size | 81X71X214mm |
| Weight | About 460g |
| Illuminant life span | 5 years, more than 3 million times measurements |
| Screen | TFT true color 3.5inch, capacitive touch screen |
| Interface | USB (charge only); Bluetooth 5.0 Button |
| Data storage | 500 standard samples, 1,0000 samples |
| Data viewing | APP supports massive search;
Device supports all data viewing |
| Operating Environment | Temperature: 0~40°C; Humidity: 0~85% (No Condensation) Altitude: less than 2000m |
| Storage Environment | -20~50℃ 0~85%RH (no condensation) |
| Standard Accessories | Power adapter manual MOBCCS APP software (download from official website Android platform) USB cable whiteboard box wrist strap
Φ8mm flat aperture |
| Optional Accessories | USB Micro PrinterPowder test box |
| Note | Technical parameters are for reference only subject to actual product |
